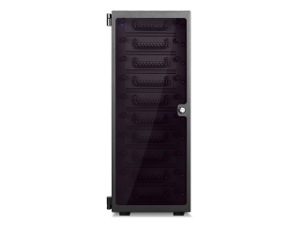

Industrial Chassis | iStarUSA Products | EAGE1040TG-SAU3 - EOL - 10-bay SATA 6.0 Gb/s eSATA USB3.0 Hotswap JBOD Tower

EAGE1040TG-SAU3
EOL - 10-bay SATA 6.0 Gb/s eSATA USB3.0 Hotswap JBOD Tower

Supports 10x 2.5"/3.5" SATA 6Gb/s Hard Drives
HDD Tray with Thumb Screw Design for Easy Swap
Semi-transparent Door with Key Lock Design
Multi-interface Support - with 2x USB 3.0 and 2x eSATA (Port Multiplier) Connectors
eSATA Chipset: JMicron JMB575
Supports SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transfer rate
Supports individual drive mode via *eSATA or USB connection

Product Introduction
EAGE1040TG-SAU3 external multi-bay JBOD tower is designed especially for storage applications. It is able to hold ten 2.5"/3.5" hard drives for storing mass data via 6.0 Gb/s eSATA connectors or USB 3.0 interfaces, offering a fast data transfer rate. Two 120mm cooling fans enhance the ventilation inside. The external JBOD storage case has solid construction and a semi-transparent door with key lock, and is a cost-effective and flexible solution for your critical data storage.

Specification	Download	FAQ
Accessories	Connection Diagram

Model Number	EAGE1040TG-SAU3
RoHS Compliance	Yes
Form Factor	TowerU
Host Interface	2x eSATA/ USB 3.0
HDD Interface	2.5" & 3.5" SATA I/II/III
Hotswap 3.5"	10
LED Display	Power and HDD Activity
Material	Steel
Main Color	Black
Power Supply	200W
Raid Level	Configured by Host Controller
Cooling Fan	2x120mm
Dimensions (WxHxD)	6.89" x 16.67" x 14.19" 175.0 mm x 423.4 mm x 360.4 mm
Notes	- each USB or eSATA connector controls 5x HDDs. - individual drive configuration is supported via eSATA controllers with Port Multiplier function. Controllers without Port Multiplier function will only recognize one single hard drive via one single eSATA connection.
