EAGE4402TG-SAU3
4-bay 2.5" SATA 6.0 Gb/s eSATA USB3.0 Hotswap JBOD Tower
  • Supports 4x 2.5" SATA 6Gb/s HDDs/SSD (up to 9.5mm thick)
  • HDD Tray with Thumb Screw Design for Easy Swap
  • Semi-transparent Door with Key Lock Design
  • Multi-interface Support - USB 3.0, eSATA (Port Multiplier)
  • 150W Power Supply Included
  • eSATA Chipset: JMicron JMB575
  • Supports SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transfer rate
  • Supports individual drive mode via *eSATA or USB connection





Product Introduction

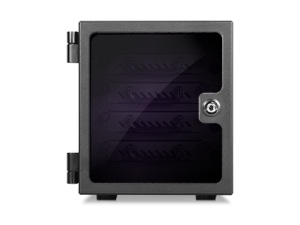

EAGE4402TG-SAU3 external multi-bay JBOD tower is designed especially for storage applications. It is able to hold four 2.5" HDDs/SSDs for storing mass data via a 6.0 Gb/s eSATA connector or USB 3.0 interface, offering a fast data transfer rate. One 60mm cooling fan enhances the ventilation inside. The external JBOD storage case has solid construction and a semi-transparent door with key lock, and is a cost-effective and flexible solution for your critical data storage.

Model NumberEAGE4402TG-SAU3
RoHS Compliance VersionYes
Form FactorTowerU
Host InterfaceeSATA/ USB 3.0
HDD Interface2.5" SATA I/II/III
Hotswap 2.5"4
LED DisplayPower and HDD Activity
MaterialSteel
Main ColorBlack
Power Supply150W
Raid LevelConfigured by Host Controller
Cooling Fan1x60mm
Dimensions (WxHxD)5.31" x 5.82" x 10.76"
134.9 mm x 147.8 mm x 273.3 mm
Notes- *individual drive configuration is supported via eSATA controllers with Port Multiplier function. Controllers without Port Multiplier function will only recognize one single hard drive via eSATA connection.
