Industrial Chassis | iStarUSA Products | EAGE540TG-SAU3 - EOL - 5-bay SATA 6.0 Gb/s eSATA USB3.0 Hotswap JBOD Tower

EAGE540TG-SAU3
EOL - 5-bay SATA 6.0 Gb/s eSATA USB3.0 Hotswap JBOD Tower

Supports 5x 2.5"/3.5" SATA 6Gb/s Hard Drives
HDD Tray with Thumb Screw Design for Easy Swap
Semi-transparent Door with Key Lock Design
Multi-interface Support - with USB 3.0 and eSATA (Port Multiplier) Connectors
eSATA Chipset: JMicron JMB575
Supports SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transfer rate
Supports individual drive mode via *eSATA or USB connection

Product Introduction

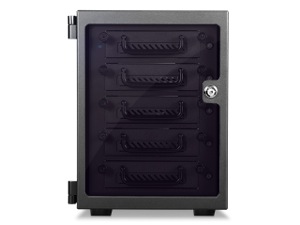

EAGE540TG-SAU3 external multi-bay JBOD tower is designed especially for storage applications. It is able to hold five 2.5"/3.5" hard drives for storing mass data via a 6.0 Gb/s eSATA connector or USB 3.0 interface, offering a fast data transfer rate. One 120mm cooling fan enhances the ventilation inside. The external JBOD storage case has solid construction and a semi-transparent door with key lock, and is a cost-effective and flexible solution for your critical data storage.

Specification	Download	FAQ
Accessories	Connection Diagram

Model Number	EAGE540TG-SAU3
RoHS Compliance	Yes
Form Factor	TowerU
Host Interface	eSATA/ USB 3.0
HDD Interface	2.5" & 3.5" SATA I/II/III
Hotswap 3.5"	5
LED Display	Power and HDD Activity
Material	Steel
Main Color	Black
Power Supply	150W
Raid Level	Configured by Host Controller
Cooling Fan	1x120mm
Dimensions (WxHxD)	6.89" x 8.82" x 14.19" 175.0 mm x 224.0 mm x 360.4 mm
Notes	- *individual drive configuration is supported via eSATA controllers with Port Multiplier function. Controllers without Port Multiplier function will only recognize one single hard drive via eSATA connection.
