MAGE212U40-PCI-E
Build-to-Order - 2U 12-bay PCI-Express Rackmount JBOD Enclosures
Build-to-Order - 2U 12-bay PCI-Express Rackmount JBOD Enclosures
- Supports SAS/SATA (3Gbps)
- External 2U-12 Bay Rack-mount Chassis
- External PCI-e (PCI-Express) x8 Host Interface
- Backplane Design for up to 12 Removable SAS/SATA Drive Trays
- Dual Hot Swappable Power Supplies
- Individual key lock of each HDD tray for physical security
- LED indicators for power and activity on each HDD tray
- Environmental Monitoring with Power/FAN/TEMP LEDs and mutable buzzer alarm
- Hot-Swap Both on Host and Device
Product Introduction
With the innovative architecture, MAGE212U40-PCI-E is designed to plug any standard SAS or SATA PCI-e Raid controller directly into its internal PCI-e slot and use its high speed external PCI-Express x8 (2GBps) as the host interface. MAGE212U40-PCI-E is an external 2U-12 Bay Hot-Swap SAS/SATA Rack-mount Enclosure. It provides users a most big storage capacity expansion solution for up to 12 SAS or SATA HDD and high performance external data storage solution for HD of 1080p video editing or any high resolution video platform. This 2U 12 Bay external SAS/SATA JBOD is designed with external PCI-e x 8 interface brings users an easy installation and enjoy fast data transmission experience.
With the innovative architecture, MAGE212U40-PCI-E is designed to plug any standard SAS or SATA PCI-e Raid controller directly into its internal PCI-e slot and use its high speed external PCI-Express x8 (2GBps) as the host interface. MAGE212U40-PCI-E is an external 2U-12 Bay Hot-Swap SAS/SATA Rack-mount Enclosure. It provides users a most big storage capacity expansion solution for up to 12 SAS or SATA HDD and high performance external data storage solution for HD of 1080p video editing or any high resolution video platform. This 2U 12 Bay external SAS/SATA JBOD is designed with external PCI-e x 8 interface brings users an easy installation and enjoy fast data transmission experience.
| Model Number | MAGE212U40-PCI-E |
| RoHS Compliance | Yes |
| Form Factor | 2U |
| Host Interface | PCI-Express x8 |
| HDD Interface | 3.5" SAS & SATA I/II |
| Hot Swap | Both on Host and Device |
| Hotswap 3.5" | 12 |
| LED Display | Green-Power on indicator/ Blue - Busy (HDD Accessing) indicator/ POWER on LED-white/ FAN normal-green; fail-red (too slow rpm or stop)/ TEMP normal-green; over 55?C-red |
| Material | Heavy-duty cold-rolled steel |
| OS Support | OS Independent |
| Package Content | Enclosure x1, HDD Tray x12, PCI-e x8 Adapter Card x1, Power Cord x1, Manual CD x1, HDD mounting screws x48, Key for HDD tray x2 |
| Power Supply | 400W Single PSU |
| Cooling Fan | 2x60mm, 2x80mm blower |
| Ordering Information (Part Number) | with 400W Redundant PSU:mAGE212U40-PCI-E-R |
| Dimensions (WxHxD) | 19.00" x 3.50" x 23.50" 482.6 mm x 88.9 mm x 596.9 mm |
FAQ
There are no FAQ entries for this model. |
Accessories
| Image | Accessory | Description |
 | CAGE-AAM1MI-H | Build-to-Order - 4 SATA to SFF-8087 Reverse Breakout Cable |
 | CAGE-AAMMMI-H | Build-to-Order - Internal mini SAS to Internal mini SAS 50cm Cable |

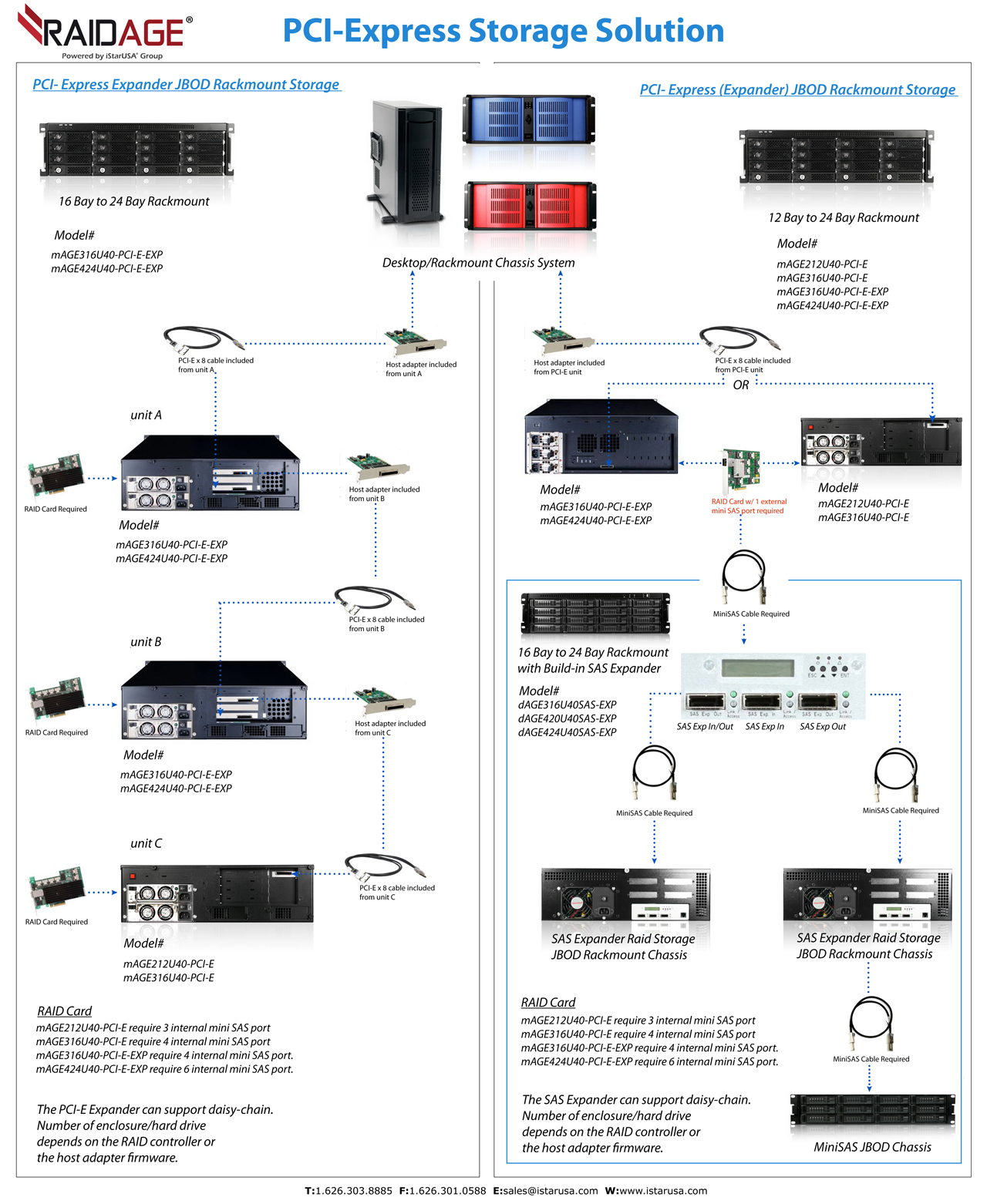

Connection Diagram
