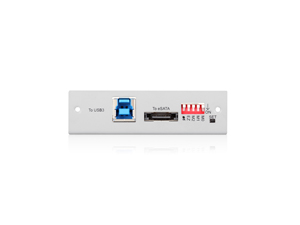

ZAGE-D-ESAU3-R
Build-to-Order - 5x SATA Drives to eSATA and USB3.0 with Hardware RAID Adapter
  • Supports SATA I/II Hard Drives, Optical Drives, and Blu-Ray Drives
  • Supports eSATA I, eSATA II, USB2.0 and USB3.0 host connection
  • Hardware RAID Board with SCSI-1 (Centronic 50pin) Metal frame and Mounting hole
  • Hardware RAID controller on board for max performance
  • Supports RAID 0, RAID 1, RAID 3, RAID 5, RAID 10, JBOD (BigDrive mode), Clone, Individual Drives (PM mode)
  • DIP Switch on board for easy Hardware RAID configuration
  • Supports Hot-swapping
  • 12 LED Pin Headers for active LED of Host & 5 SATA devices
  • Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
  • Supports SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transfer rate
  • Supports Windows 7, Vista, XP, 2003, 2008, Mac OS X and Linux kernel 2.4 and above for software utility (RAID management and configuration)
  • OS independent
  • Support 48-bit LBA addressing
  • Supports Native Command Queue (NCQ)
  • Supports individual drive mode via eSATA* or USB connection
  • independent drive configuration and optical drive are supported via eSATA only when connecting to controllers that are Port Multiplier compatible
  • eSATA Chipset: JMicron JMB393
Product Introduction

Model NumberZAGE-D-ESAU3-R
RoHS ComplianceYes
Host InterfaceeSATA/ USB 3.0
OS SupportOS independent
Raid Level0,1,3,5,10,JBOD (Big drive mode), Clone, Individual (PM mode)
Dimensions (WxHxD)2.20" x 0.90" x 3.40"
55.9 mm x 22.9 mm x 86.4 mm
Notes- only one hard drive can be recognized via eSATA connection in Individual Drive Mode if the eSATA host controller does not support Port Multiplier function
