WO22AB

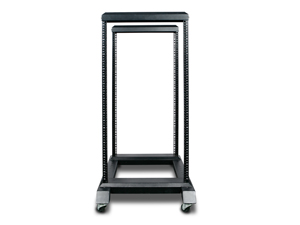

End of Life - 22U 4 Post Open Frame Rack
End of Life - 22U 4 Post Open Frame Rack
- Open Frame Construction Enables Quick Access to Rackmount System
- Easy to Transport with Rolling Caster
- Manufactured in Accordance with ANSI / EIARS-310-D, IEC297-2, DIN41491 (PART 1), DIN41494 (PART7) and GB / T3047.2-921 Standards
- Modular Design, Easily Assemble and Disassemble For Logistic and Relocation of Cabinet to Enable Cost-Effective Solution
- Locking Mechanism Design on Casters
- Comes with M6 Mounting Screws and Cage Nuts
Product Introduction
CLAYTEK open frame rack provide simplicity with mobility. Quick and easy assembly steps to setup open rack. The WO sturdy steel frame construction enforces stability and durability. Steel iron castors come standard to help moving the server easily to any location. Open frame rack has higher thermal manageability by room or central air conditioning. WO series is a flexible and cost-effective solution for rackmount cabinet.
CLAYTEK open frame rack provide simplicity with mobility. Quick and easy assembly steps to setup open rack. The WO sturdy steel frame construction enforces stability and durability. Steel iron castors come standard to help moving the server easily to any location. Open frame rack has higher thermal manageability by room or central air conditioning. WO series is a flexible and cost-effective solution for rackmount cabinet.
SUPPORT
Providing technical support as of top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
| Model Number | WO22AB |
| RoHS Compliance Version | Yes |
| Form Factor | 22U |
| Industry Standard | ANSI/EIA RS-310D, DIN41491, PART1, IEC297-2, PART7, GB/T3047.2-92 |
| Loading Capacity | 330 lbs |
| Supported Chassis Depth | 31" and under |
| Internal Dimensions | Depth: Outer post-to-post:31" max/ 9.5" min Hole-to-hole:27" max/ 5.5" min |
| Dimensions (WxHxD) | 23.62" x 43.85" x 39.37" 600 mm x 1,114 mm x 1,000 mm |
| Notes | - HTS code: 8473.30.5100 (ECCN is not applicable). - not compatible with HP/ DELL/ IBM servers equipped with sliding rails. |
FAQ
There are no FAQ entries for this model. |
Accessories
| Model # | Description | |
 | WA-CM1UB | 1U Cable Management Rack Kit |
 | WA-CM2UB | 2U Cable Management Rack Kit |
 | WA-KBR96B | Build-to-Order - 1U Compact Sliding Keyboard Drawer |
 | WA-LB96B | Cabinet Supporting Bar |
 | WA-PD010 | 10 Outlet Overload Circuit Breaker Protection Power Distribution Unit |
 | WA-PD016 | 16 Outlet Lightning Surge Protection Power Distribution Unit |
 | WA-PS06A | Build-to-Order - 6 Outlet Power Strip |
 | WA-SF96B | Heavy Duty Rackmount Shelf |
 | WA-SFR96B | Heavy Duty Sliding Tray |
 | TC-RAIL-20 | 20" Sliding Rail Kit for Most Rackmount Chassis |
 | TC-RAIL-24 | 24" Sliding Rail Kit for Most Rackmount Chassis |
 | TC-RAIL-26 | 26" Sliding Rail Kit for Most Rackmount Chassis |
