D-200SEA-RD-T7SA
2U Compact Stylish Rackmount Chassis with red SEA Bezel and Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
2U Compact Stylish Rackmount Chassis with red SEA Bezel and Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 80mm x1 cooling fan
- Power and HDD LED
- Power and Alarm Reset Switch
- Optional Aluminum Chassis
- With rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
Product Introduction

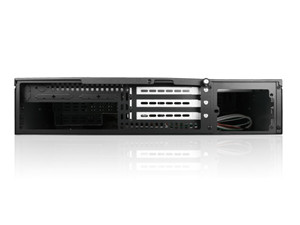

The 2U compact industrial rackmount chassis D Storm D-200SEA-RD-T7SA. The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA-RD-T7SA support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution, also with rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
The 2U compact industrial rackmount chassis D Storm D-200SEA-RD-T7SA. The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200SEA-RD-T7SA support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution, also with rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
SUPPORT
Providing technical support as of top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
| Specifications | Download | FAQ |
| Optional Accessories | Compatible Power Supplies | Compatible Motherboards |
| Riser Card Info |  |
| Model Number | D-200SEA-RD-T7SA |
| RoHS Compliance Version | Yes |
| Form factor | 2 U |
| Standard Drive Bays |
3.5" Drives: 2 5.25" Drives: 2 |
| Indicators | Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 ) |
| Switches | Power, Reset |
| Supported PSU Type | 2U |
| Expansion Slots | 3 |
| Security | Front Bezel Key Lock |
| Material of Front Bezel | Aluminum alloy |
| Material of Handle | SECC Zinc-Coated Steel |
| Material of Main Chassis | 1.2mm SECC Zinc-Coated Steel (Japan Made) |
| Color of Front Bezel | Blue |
| Color of Main Chassis | Black |
| Front Connector | 2x USB 3.0 |
| Motherboard Size | 12 x 9.6 (ATX, microATX, mini-ITX) |
| Cooling Fan | 1x80mm |
| Optional Fan: | 60mm x3 (bracket DD-FANGUARD-6 required) |
| Dimensions (WxHxD) | 19.00" x 3.50" x 20.80" 482.6 mm x 88.9 mm x 528.3 mm |
| Notes | - low profile backplate option, P/N: DD-200-LP-PCI. - cross bar option for redundant power supplies, P/N: DD-200-R2U-BAR. |
