FS-1004
Fanless Desktop for Mini-ITX
Fanless Desktop for Mini-ITX
Features
| Product Specifications | |
| Model Number | FS-1004 |
| RoHS Compliance | Yes |
| Standard Drive Bays | None |

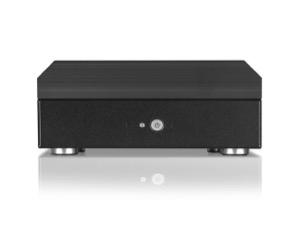

| Front Panel | Power SW. Power LED. HDD LED. |

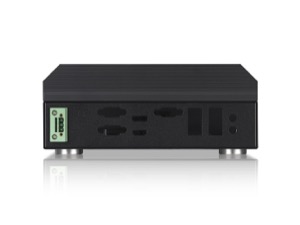

| Back Panel | USB 3.0 x 4. LAN x 2. HDMI x 1. DP x 1. VGA X1 . DB9 cutoff hole x 2. MIC x1. Line out x 1 |
| Motherboard Size: | For Mini-ITX |
| External Adapter Input | 9V-24V DC In C4/150W converter |
| Dimensions (WxHxD) | 8.90" x 3.50" x 10.30" 226.1 mm x 88.9 mm x 261.6 mm |
| Images | Model # | Motherboard Size | Company Name | Processor family | Compatible processor |
 |

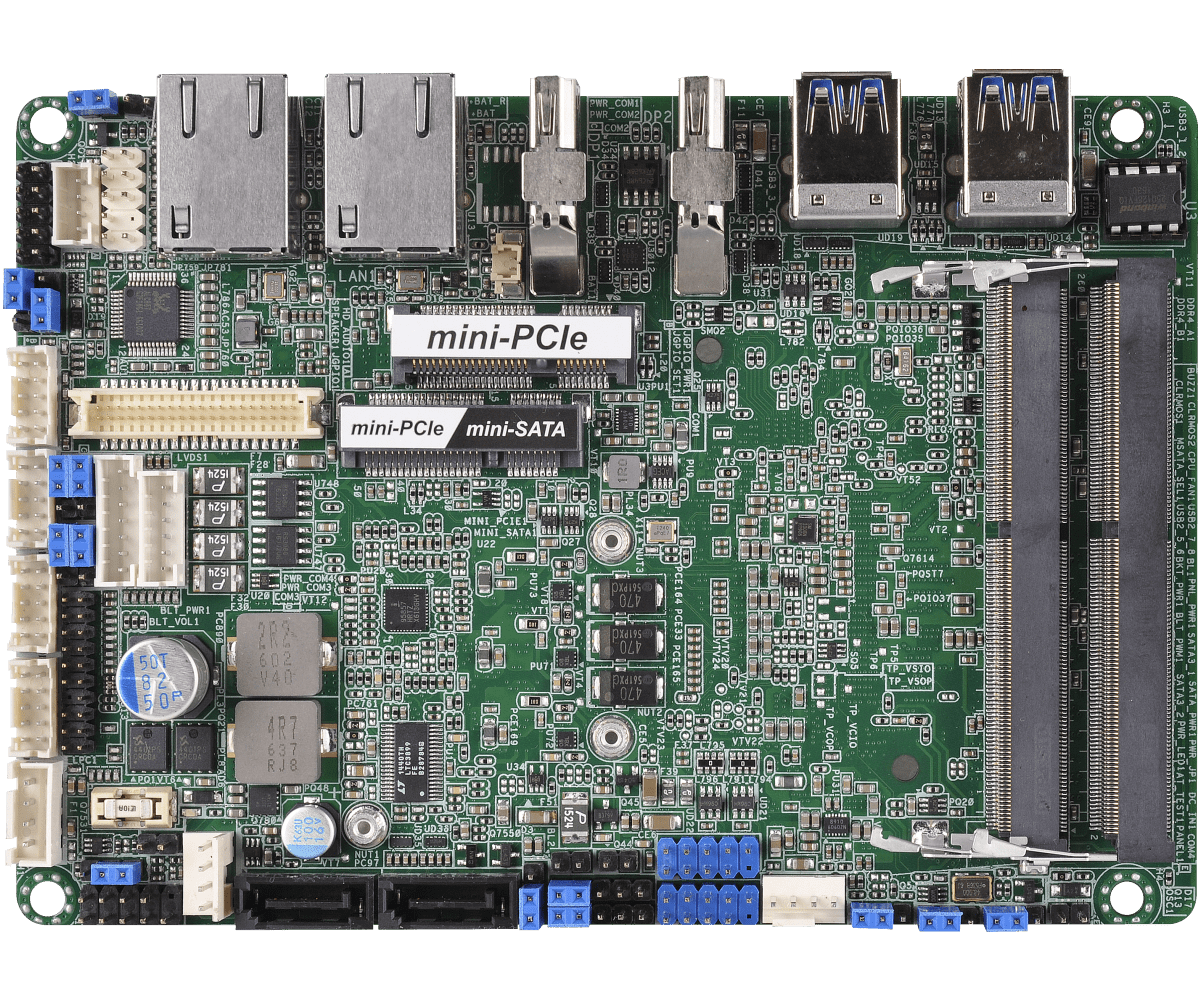

SBC-330 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Skylake U | Intel Core i7-6600U Intel Core i5-6300U Intel Core i3-6100U Intel Core i7-4650U Intel Core i5-43 |
 |
SBC-311 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Skylake U | Intel Core i7-6600U Intel Core i5-6300U Intel Core i3-6100U Intel Core i7-4650U Intel Core i5-43 |
 |

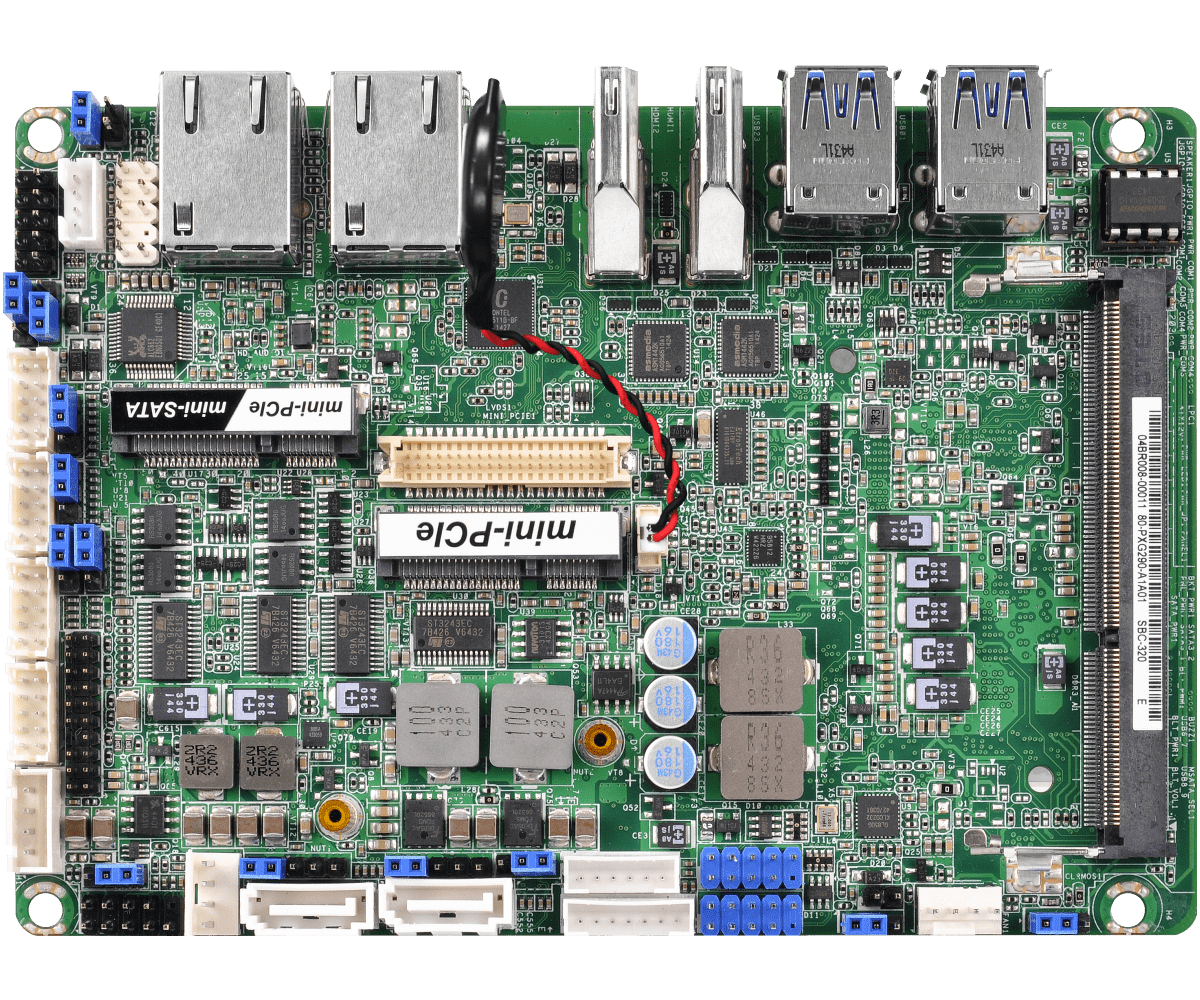

SBC-310 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Skylake U | Intel Core i7-6600U Intel Core i5-6300U Intel Core i3-6100U Intel Core i7-4650U Intel Core i5-43 |
 |
SBC-230 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
 |
SBC-E230 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
 |
SBC-E230-WT | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
 |
SBC-220 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Braswell | N3160 N3150 |
 |
SBC-210 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Baytrail | E3845 E3826 J1900 N2930 N2920 |
 |
SBC-211 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Baytrail | E3845 E3826 J1900 N2930 N2920 |
 |
SBC-212-WT | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Baytrail | E3845 E3826 J1900 N2930 N2920 |
 |
IMB 156 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
 |
IMB E156 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
 |
IMB 157 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
 |
IMB 154 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Braswell | N3160 N3150 |
 |
IMB 150 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Baytrail | J1900 N2930 N2920 |
 |
IMB 151 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Baytrail | J1900 N2930 N2920 |
 |
IMB 152 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Baytrail | J1900 N2930 N2920 |
 |
IMB 153 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Baytrail | J1900 N2930 N2920 |
 |
IMB 180 | Mini-ITX (6.7-in x 6.7-in) | asrock | QM87 | Intel Core i7-4930MQ Intel Core i7-4702MQ Intel Core i5-4330M Intel Core i5-4200M Intel Core |
 |
IMB 182 | Mini-ITX (6.7-in x 6.7-in) | asrock | QM87 | Intel Core i7-4930MQ Intel Core i7-4702MQ Intel Core i5-4330M Intel Core i5-4200M Intel Core |
 |
IMB 170 | Mini-ITX (6.7-in x 6.7-in) | asrock | QM77 | Intel Core i7-3610QE Intel Core i5-3610ME Intel Core i3-3120ME Intel Core i7-2710QE Intel C |
