FS-12341

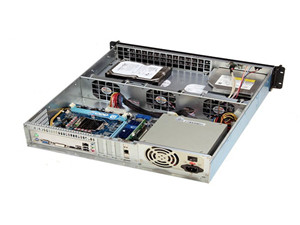

2U Rackmount chassis for Micro-ATX systems
2U Rackmount chassis for Micro-ATX systems
FS-12341 featured 4 x hotswappable 3.5" HDD and front accessible fan filter. Support MATX motherboard and 4 x low profile expansion slots.
**Motherboard and system components are not included, please contact our sales for system intergration inquiries**
Features
- 2U industrial rackmount platform for Micro-ATX motherboards (9.6" x 9.6")
- Supports: 2 x hot-swap, 4 x low profile expansion, front access slim type disk drive slot
| Product Specifications | |
| Model Number | FS-12341 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Internal Drive Bay : 1 x 3.5" OR 1 x 2.5" Hot Swappable Drive Bay: 4 x 3.5" HDD Tray (Front) Optical Drive Bay: 1 (Slim) |
| Form Factor: | 2U |
| Motherboard Size: | Micro-ATX |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 30 |
| Mounting Option | Optional Sliding rails |
| Front LED Indicator | 1 x Activity; 1 x Power |
| Front USB Port | 2 |
| Front Power Switch | 1 |
| Memory Height | Accepts standard size |
| Expansion Slot | 4 x Low Profile |
| Compact Flash Slot | 1 x CF Cutoff |
| Cooling System: | 3 x 80mm fan |
| I/O Shield | Standard I/O |
| Supported PSU Type | PSII |
| Dimensions (WxHxD) | 19.00" x 3.46" x 19.96" 482.6 mm x 87.9 mm x 507.0 mm |
Contact us to Customize Your System
