FS-13280
3U Rackmount chassis for 2 x Mini-ITX systems
3U Rackmount chassis for 2 x Mini-ITX systems

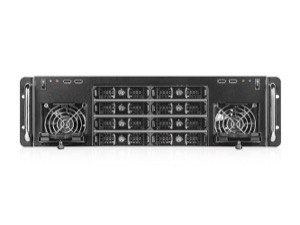

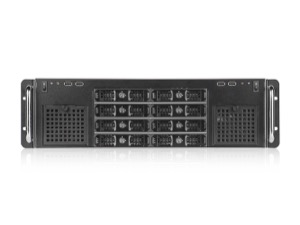

FS-13280 is a 3u rackmount chassis support dual Mini-ITX System. Featured 8 x hot swappable 3.5" , 2 x front accessible fan filter. Support 2 x 2.5" and 2 x 3.5" HDD, 2 x full height expansion cards and dual FLEX ATX power supply.
**Motherboard and system components are not included, please contact our sales for system intergration inquiries**
Features
- 3U rackmount server chassis for 2 x Mini-ITX motherboards
- Removable fan cage door and filters; DC cooling fans
- Steel construction for industrial applications.
| Product Specifications | |
| Model Number | FS-13280 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Internal Drive Bay : 2 x 2.5" and 2 x 3.5" Hot Swappable Drive Bay: 8 x 3.5" HDD Tray |
| Form Factor: | 3U |
| Motherboard Size: | Mini-ITX |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 30 |
| Mounting Option | Optional Sliding rails |
| Front LED Indicator | 2 x Activity; 2 x Power |
| Front USB Port | 4 (2 x 2) |
| Front Power Switch | 2 |
| Memory Height | Accepts standard size |
| Expansion Slot | 2 x PCI |
| Cooling System: | 4 x 60mm and 2 x 80mm fan |
| I/O Shield | Standard I/O |
| Supported PSU Type | Flex Power Supply |
| Dimensions (WxHxD) | 19.00" x 5.19" x 17.56" 482.6 mm x 131.8 mm x 446.0 mm |
