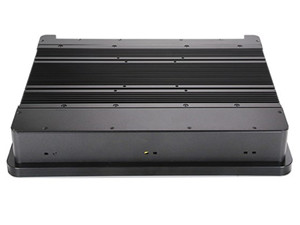

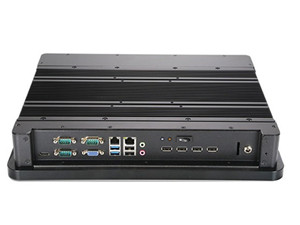

FS-P115
15" Panel PC chassis for mini-ITX system with Projected Capacitive Type Touch Screen
Features
  • IP65 front bezel
  • 15" panel with touch
  • Silent, and dust-free
Product Specifications
Model NumberFS-P115
RoHS ComplianceYes
Standard Drive Bays None
Material SGCC / Anodized aluminum heatsink
SurfaceBlack wet Surface paint with texture coat.
LCDResolution: 1024xRGBx768
Brightness: 300cd/m2 (typ.)
Color Support: 16.2M/262k
Contrast Ratio: 800:1 (typ.)
Response Time: 8ms (typ.)
TouchTouchscreen Type: Projected Capacitive
Surface Hardness: ò7H
Durability: 100,000,000 times
Transparency: ò90%
TDPMax. 35W
Storage2.5" HDD x 1
Power Solution Option 1
Internal DC Power BoardC7 (80W) DC Power Board
External AC Adapter60W: Input (AC 100~240V);
Output (DC 12V@5A)
Power Solution Option 2
Internal DC Power BoardC7 (80W) DC Power Board
External AC Adapter80W: Input (AC 100~240V);
Output (DC 12V@6.67A)
Dimensions (WxHxD)13.09" x 2.08" x 10.64"
332.5 mm x 52.8 mm x 270.3 mm
Complete OEM/ODM Services
More Than 20 Years of Experience
That You Can Trust
Contact us to Customize Your System
We Strive Hard to Deliver Your Highest Quality Systems On Time and On Budget
