D-106

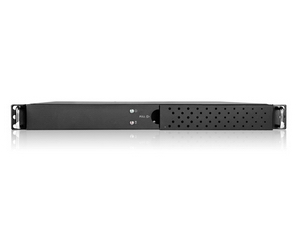

Build-to-Order - 1U Ultra-compact Rackmount Chassis
  • Signature Aluminum Front Panel
  • Front Access USB2.0x1
  • 40mmx3 cooling fan
  • Performance front cold air intake tunnel
  • Power and HDD LED
  • Power and alarm reset switch
  • Thumb screw 5.25 drive bay
  • 32bit PCI riser card x1 (optional 64 bits)





Product Introduction
The most compact and versatile industrial rackmount chassis D Storm D-106. Our unique thermal cooling solution including front cold air intake tunnel and CoolingFan cooling fan can cool the system down while it runs at optimal level. Optional slim CD and floppy combo enable hot-swappable storage, raid configuration, and total storage capacity up to 1 terabytes provide the server or cluster maximum flexibility and performance.

Model NumberD-106
RoHS Compliance VersionYes
Form factor1 U
Standard Drive Bays 2.5" Drive (internal): 2
3.5" Drives: 1
3.5" Drive (internal): 1
5.25" Drives: 1
IndicatorsLEDs for Power ON/OFF, HDD, Fan & Alarm
SwitchesPower ON/OFF, System & Alarm Reset
Expansion Slots1
SecurityFront Bezel
Material of Front BezelAluminum alloy
Material of HandleSECC Zinc-Coated Steel
Material of Main Chassis1.2mm SECC Zinc-Coated Steel
Color of Front BezelBlack
Color of Main ChassisBlack
Front ConnectorFront USB 2.0 x 1 Connector
Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan3x40mm
Dimensions (WxHxD)19.00" x 1.75" x 20.00"
482.6 mm x 44.4 mm x 508.0 mm
Notes- standard I/O shield will NOT fit any 1U chassis.
- for PCI riser, use DD-611-C5 (search for DD-611-CX).
- for PCIe x16 riser, use DD-666-C5 (search for DD-666-CX).


FAQ

Q: Are there sliding rails for D-106 1U chassis?
A: Yes, the model # will be RP-RAIL-22-1U, 1U 22 sliding rails.



Optional Accessories

Model #Description
BPU-124V2-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SABuild-to-Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-2535-SI3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
DIY-RHF03Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
RP-COMBO-SLIM5.25" Optical Drive and Floppy Drive Cage Holder
RP-COMBO-SLIM25352.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
RP-FDD355.25" Drive Bay Bracket for 3.5" Devices
RP-HDD2.52.5" to 3.5" Hard Drive Mounting Bracket
RP-HDD25BC2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD25P3.5" Drive Bay Bracket for 2x 2.5" SSDs
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
RP-HUB-SAUF3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
RP-RAIL-20-1U20" Sliding Rail Kit for 1U Short Rackmount Chassis
RP-READER35Build-to-Order - All-in-one USB 2.0 Card Reader
T5F-SSTrayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
T5-SABuild-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
T-7M1-SATA5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-7-SARugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
TC-ISTORM83.5" to 5.25" Hard Drive Cooling Heat Sink
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
RP-4HDD255F4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
BPN-DE110SSTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
BPU-124DE-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-G525-SSIndustrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
BPN-2535DE-SA3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-G35-SSIndustrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPN-DE110SS-WBTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-124K-SATrayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K3525U-SATrayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K225T-SATrayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K35T-SABuild-to-Order - Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
T-5K25TU-SATrayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-35K25-SABuild-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Single
IS-1U35PD8Build-to-Order - 1U 350W 80 Plus High Efficiency Power SupplyBRT-0101-2 (1)
IS-1U40PD81U 400W 80 Plus High Efficiency Power SupplyBRT-0101-2 (1)
IS-1U46PD8Build-to-Order - 1U 460W 80 Plus High Efficiency Power SupplyBRT-0101-2 (1)
IS-1U50PD81U 500W 80 Plus High Efficiency Power SupplyBRT-0101-2 (1)

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.

Featured Videos

Description:
How to Install D-106 Rackmount Chassis to WN228 Server Cabinet

Products:
WN228, D-106, DD-RearMount
