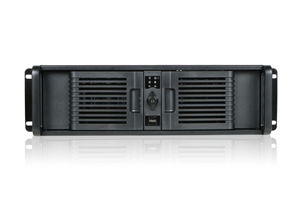

D-300-PFS
3U Compact Stylish Rackmount Chassis Front-mounted ATX Power Supply
  • Front Mount ATX Power Supply
  • Front Access USB3.0 x2
  • 80mm x1, 60mm x1 Cooling Fan
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Optional Aluminum Chassis
Product Introduction
The 3U industrial rackmount chassis D Storm D-300-PFS. It features two 5.25 and six 3.5 bays for high density storage application. D-300-PFS backplane supports 7 full-length add-on cards. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution provide your system with maximum flexibility and performance.

Model NumberD-300-PFS
RoHS ComplianceYes
Form factor3 U
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 5
5.25" Drives: 2
IndicatorsPower, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
SwitchesPower ON/OFF, System & Alarm Reset
Expansion Slots7
SecurityFront Bezel
Material of Front BezelPlastic
Material of HandleSECC Zinc-Coated Steel
Material of Main Chassis1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front BezelBlack
Color of Main ChassisBlack
Front ConnectorFront USB 3.0 x 2 Connector
Air FilterRemovable & Washable
Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan1x60mm, 1x80mm
Optional Fan:60mm x1, 80mm x3 (bracket DD-FANGUARD-8 required)
Dimensions (WxHxD)19.00" x 5.25" x 20.80"
482.6 mm x 133.3 mm x 528.3 mm
Notes- supports standard ATX power supply length up to 160mm.


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
BPU-124V2-SSBuild-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SASpecial Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-230SATA2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-2535-SIBuild-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
DD-FAN8080mm Ball Bearing Fan
DIY-RHF03Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
RP-COMBO-SLIM5.25" Optical Drive and Floppy Drive Cage Holder
RP-COMBO-SLIM25352.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
RP-FDD355.25" Drive Bay Bracket for 3.5" Devices
RP-HDD2.52.5" to 3.5" Hard Drive Mounting Bracket
RP-HDD25BC2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
RP-HUB-SAUF3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
RP-READER35Build-to-Order - All-in-one USB 2.0 Card Reader
T-25HD-SIBuild-to-Order - 2.5" SATA HDD SSD Slot Carrier
T5F-SSEOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
T5-SABuild-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
T-7M1-SATA5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-7-SARugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
TC-ISF088 Ports Fan Sensor Board
TC-ISTORM72x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
TC-ISTORM83.5" to 5.25" Hard Drive Cooling Heat Sink
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
BPN-DE230SSTrayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
RP-4HDD255FEOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
BPN-DE110SSTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
BPU-124DE-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-G525-SSIndustrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
BPN-2535DE-SA3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-G35-SSIndustrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPN-DE110SS-WBTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-DE230SS-WBTrayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
T-5K3525U-SATrayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K225T-SATrayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K35T-SATrayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
T-5K25TU-SATrayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-35K25-SABuild-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Single
TC-350PD3Special Order - 350W PS3 Size ATX12V Switching Power SupplyBrackets Not Required
TC-400PD8Build-to-Order - 400W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-500PD8500W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-500PD8B500W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-700PD8B700W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-C(4L)ATXASUS
P8B-E(4L)ATXASUS
P8B-XATXASUS
P6T WS ProfessionalATXASUS
P6X58-E WSATXASUS
P8B WSATXASUS
P8C WSATXASUS
P8P67 WS REVOLUTIONATXASUS
P8Z77 WSATXASUS
Z9PA-U8ATXASUS
P8B-MXMicro-ATXASUS
C216 WSATXASRock
E3C204ATXASRock
E3C204-4LATXASRock
E3C204-V+ATXASRock
E3C204-V4LATXASRock
H77WS-DLATXASRock
Z77 WSATXASRock
AD2550R/U3S3Mini ITXASRock
S5512ATXTYAN
S5510MicroATXTYAN
S5515MicroATXTYAN
GA-6UASV3microATXGIGABYTE
GA-6UASL3microATXGIGABYTE
GA-6PXSV4ATXGIGABYTE
GA-6PXSV1ATXGIGABYTE
GA-6PXSV2ATXGIGABYTE
GA-6PXSV3ATXGIGABYTE

Chassis Combo

Model #HDD Tray Front Bezel
Color		Hotswap
3.5" Bay		 Hotswap
2.5" Bay		Ext
5.25"		 Ext
3.5"		HDD Type
D300PFS-2DE1BKTraylessBlack20013.5" SAS I/II & SATA I/II/III
D300PFS-DE1BKTraylessBlack10113.5" SAS I/II & SATA I/II/III
D300PFS-2DE1SLTraylessBlack20013.5" SAS I/II & SATA I/II/III
D300PFS-DE1SLTraylessBlack10113.5" SAS I/II & SATA I/II/III
D300PFS-2DE1BLTraylessBlack20013.5" SAS I/II & SATA I/II/III
D300PFS-DE1BLTraylessBlack10113.5" SAS I/II & SATA I/II/III
D300PFS-2DE1RDTraylessBlack20013.5" SAS I/II & SATA I/II/III
D300PFS-DE1RDTraylessBlack10113.5" SAS I/II & SATA I/II/III
D300PFS-25M2TraylessBlack02202.5" SATA I/II
D300PFS-DE3BKTraylessBlack30013.5" SAS I/II & SATA I/II/III
D300PFS-DE3SLTraylessBlack30013.5" SAS I/II & SATA I/II/III
D300PFS-DE3BLTraylessBlack30013.5" SAS I/II & SATA I/II/III
D300PFS-DE3RDTraylessBlack30013.5" SAS I/II & SATA I/II/III
D300PFS-2B126TrayBlack012012.5" SATA I/II/III
D300PFS-B126TrayBlack06112.5" SATA I/II/III
D300PFS-2B124TrayBlack08012.5" SAS I/II & SATA I/II/III
D300PFS-B124TrayBlack04112.5" SAS I/II & SATA I/II/III
D300PFS-B3BKTrayBlack30013.5" SAS I/II & SATA I/II/III
D300PFS-B3SLTrayBlack30013.5" SAS I/II & SATA I/II/III
D300PFS-B3BLTrayBlack30013.5" SAS I/II & SATA I/II/III
D300PFS-B3RDTrayBlack30013.5" SAS I/II & SATA I/II/III
D300PFS-B3PLTrayBlack30013.5" SAS I/II & SATA I/II/III
D300PFS-2M1BKTrayBlack20013.5" SAS I/II & SATA I/II/III
D300PFS-M1BKTrayBlack10113.5" SAS I/II & SATA I/II/III
D300PFS-2M1SLTrayBlack20013.5" SAS I/II & SATA I/II/III
D300PFS-M1SLTrayBlack10113.5" SAS I/II & SATA I/II/III
D300PFS-2M1BLTrayBlack20013.5" SAS I/II & SATA I/II/III
D300PFS-M1BLTrayBlack10113.5" SAS I/II & SATA I/II/III
D300PFS-2M1RDTrayBlack20013.5" SAS I/II & SATA I/II/III
D300PFS-M1RDTrayBlack10113.5" SAS I/II & SATA I/II/III
D300PFS-2M1PLTrayBlack20013.5" SAS I/II & SATA I/II/III
D300PFS-M1PLTrayBlack10113.5" SAS I/II & SATA I/II/III
D300PFS-2T7TrayBlack20013.5" SAS I/II & SATA I/II/III
D300PFS-T7TrayBlack10113.5" SAS I/II & SATA I/II/III
D300PFS-2T5FTraylessBlack20013.5" SAS I/II & SATA I/II/III
D300PFS-T5FTraylessBlack10113.5" SAS I/II & SATA I/II/III
