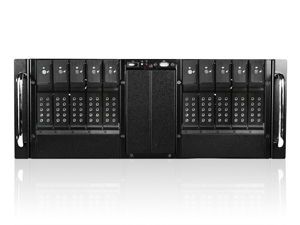

D-410-DE10
4U 10-bay Stylish Hotswap Trayless Storage Server Rackmount
  • Supports Up to 10x 3.5" Hard Drives
  • 120mm x 2 Cooling Fans on Sides
  • Front Access USB2.0 with Power and HDD LEDs
  • Supports SAS/SATA 6.0Gb/s Hard Drives
  • Trayless Hard Drive Enclosure Design
  • PS2 mini Redundant PSU Compatible
Product Introduction
iStarUSA 4U industrial rackmount chassis D Storm D-410-DE10 combines with BPN-DE trayless series to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 10 storage drives for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410-DE10 provides server or cluster maximum reliability and performance.

Model NumberD-410-DE10
RoHS ComplianceYes
Form factor4 U
Standard Drive Bays Hotswap 3.5": 10
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU TypePS2
Expansion Slots7
Material of Main ChassisZinc-Coated Steel
Color of Main ChassisBlack
Front Connector1x USB 2.0
Motherboard Size12 x 13 (EATX, ATX, microATX)
Cooling Fan2x120mm
Ordering Information
(Part Number)
Black HDD Handle:D410-DE10BK
Silver HDD Handle:D410-DE10SL
Blue HDD Handle:D410-DE10BL
Red HDD Handle:D410-DE10RD
Dimensions (WxHxD)19.00" x 7.00" x 25.00"
482.6 mm x 177.8 mm x 635.0 mm


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
BPU-124V2-SSBuild-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SASpecial Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-230SATA2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
RP-COMBO-SLIM5.25" Optical Drive and Floppy Drive Cage Holder
RP-COMBO-SLIM25352.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
RP-FDD355.25" Drive Bay Bracket for 3.5" Devices
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
T5F-SSEOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
T-7M1-SATA5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-7-SARugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
TC-ISTORM72x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
BPN-DE230SSTrayless 2x5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
RP-4HDD255FEOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
BPN-DE110SSTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
BPU-124DE-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-G525-SSIndustrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
BPN-DE110SS-WBTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-DE230SS-WBTrayless 2x 5.25" to 3x 3.5" SAS SATA 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-124K-SATrayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K3525U-SATrayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K225T-SATrayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K35T-SATrayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
T-5K25TU-SATrayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Redundant
IS-550R8PEOL - 550W PS2 Mini Redundant Power SupplyBrackets Not Required

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.

Featured Videos

There are currently no iStarVideos for this Item.
