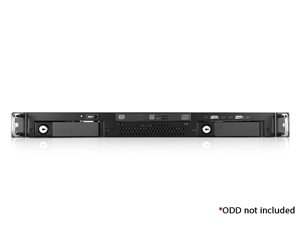

D-A120T-ITX
1U 2x 3.5" Bay Tool-less Hot swap ITX Chassis

2xTool-Less Hotswap 3.5" Drive Bay. Compatible with 2.5" SSD/HDD (screws needed)
1x Internal 3.5" Bay
Slim Optical Drive Bay (12.7mm height) Available
Front Access USB2.0X2
40mm x3 Cooling Fan Inside
Power LED and Switch

Product Introduction
The D-A120T-ITX and D-A380T-MATX series are the same family designed with elegance and functionality fit for Home Theater Personal Computer (HTPC). With the advancement of Tool-Less server racks for home, these models are ideal for changing HDD without any tool, just need your hand. With storage capacity up to 4 TB per each bay, the drive cage has tray supporting both 3.5" & 2.5" HDD mounting and maximizes data storage and backup functionality at the same time. These series are ideal platform for HTPC build using popular AMD and Intel processors.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	D-A120T-ITX
RoHS Compliance	Yes
Form factor	1 U
Standard Drive Bays	3.5" Drive (internal): 1 Hotswap 3.5": 2 Slim 5.25" Optical: 1
Indicators	Power
Switches	Power
Supported PSU Type	1U Flex
Expansion Slots	1
Material of Handle	Aluminum
Material of Main Chassis	SGCC 1.0mm
Color of Main Chassis	Black
Front Connector	2x USB 2.0
Motherboard Size	6.7 x 6.7 (mini-ITX)
Cooling Fan	3x40mm
Dimensions (WxHxD)	18.98" x 1.75" x 18.25" 482.1 mm x 44.4 mm x 463.5 mm
Notes	- standard I/O shield will NOT fit any 1U chassis.

Download

Product Drawing (PDF)

FAQ

Q :	What is the difference between two SATA ports?
A :	One is SATA/SAS (Primary) and the other is SAS (Secondary). Please refer to the PDF file.

Optional Accessories

Model #

Description

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Single
	TC-1U15FX1	Special Order - 1U 150W Flex Power Supply	Brackets Not Required
	TC-1U18FX1	1U 180W Flex Power Supply	Brackets Not Required
	TC-1U22FX8	Special Order - 1U 220W Flex High Efficiency Power Supply	Brackets Not Required
	TC-1U30FX8	1U 300W Flex High Efficiency Power Supply	Brackets Not Required
