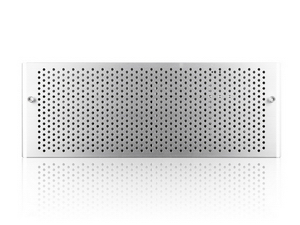

EA-4M20-JB
4U 20-Bay Storage Rackmount Chassis

Advance Thermal Cooling Design Optimizes Airflow
miniSAS (SFF-8087) HDD Backplane
Power + Fan Failure + HDD LED Indicator
Power/Alarm Reset Switch
Fully RoHS Compliance
Support 6.0Gb/s SAS/SATA Hard Drives

Product Introduction
The EA storage series rackmount not only has the stylish appearance, but the functionality and flexibility make EA series a new breed of disk array. As SAS and SATA technology has become a more cost effective solution, we has taken a step forward to prepare the migration of new technology and provide the mini SAS backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications. The EA Rack is a 19" rack mount storage chassis designed to fit onto industrial standard computer rack. Designed to provide tremendous configuration flexibility, the Storage Rack is an ideal platform for creating a custom storage solution with multi-terabytes capability for video storage or editing, data archiving, uninterruptible storage, storage farm or any application that requires high performance or high storage capacity or both. Unlike many of the expensive proprietary storage solution in the market, the Storage Rack offer similar performance and capability at much lower cost per GB storage. In addition, the the Storage Rack can also be easily reconfigured, modified or upgraded at any time to meet your new application need without investing into new storage devices or new storage box.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	EA-4M20-JB
RoHS Compliance	Yes
Form factor	4 U
Standard Drive Bays	Hotswap 3.5": 20
Hotswap HDD Type:	3.5" SAS/ SATA II
Indicators	Power + Fan Failure + HDD LED
Switches	Power On/Off, Reset, Mute
Expansion Slots	6
Material of Front Bezel	Texture-Coated Aluminum
Material of Handle	Aluminum
Material of Main Chassis	Heavy-Duty Cold-Roll Steel with Zinc-Plated Bright Chromate
Cooling Fan	1x120mm
Dimensions (WxHxD)	19.00" x 7.00" x 19.00" 482.6 mm x 177.8 mm x 482.6 mm

Download

Data Sheet (PDF)

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	CAGE-AAMMM1	Build-to-Order - External mini SAS to External mini SAS Cable
	CAGE-AAMMMI-H	Build-to-Order - Internal mini SAS to Internal mini SAS 50cm Cable
	CAGE-AAMSM1	External Multilane to External mini SAS Cable
	ZAGE-D-8788-DU	Dual miniSAS SFF-8087 to SFF-8088 Device Adapter
	ZAGE-D-8788-SI	Single miniSAS Device Adapter
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-550R8P	EOL - 550W PS2 Mini Redundant Power Supply	Brackets Not Required
Single
	TC-500PD3	Build-to-Order - 500W PS3 Size ATX12V Switching Power Supply	Brackets Not Required
	IS-680PD8	Build-to-Order - 680W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
