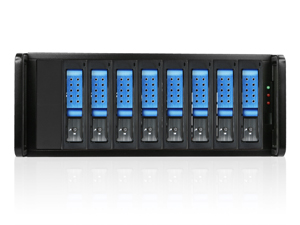

DAGE408U40DE-ES
4U 8-bay 3.5" SATA 6.0 Gb/s eSATA Trayless JBOD Chassis 500W PSU
  • Supports 8x SATA 6Gb/s Hard Drives
  • LED Indicators for Power and Activity on Each Hard Drive
  • 120mm Cooling Fan for Ventilation
  • 8x eSATA Connectors
  • Trayless Design
  • Hot-swappable Both on Host and Device
  • Supports up to 6.0Gb/s Data Transfer Speed Per eSATA Connection





Product Introduction
DAGE408U40DE-ES is an external 4U-8 bay Trayless hot-swappable SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 8 SATA drives for 1/0/5/JBOD RAID configuration. This 4U-8 Bay external SATA enclosure is designed with 8 eSATA connectors. One 120mm Ball bearing fan offer long lasting and enhanced thermal cooling solution. DAGE408U40DE-ES provides maximum storage and performance to high density storage system.

Model NumberDAGE408U40DE-ES
RoHS Compliance VersionYes
Form Factor4U
Host Interface8x eSATA
HDD Interface3.5" SATA I/II/III
Hot SwapBoth on Host and Device
Hotswap 3.5"8
LED DisplayPower and HDD Activity
MaterialChassis: 1.2 mm SECC Zinc-Coated Steel
Main ColorBlack
Power Supply500W Single PSU
Cooling Fan1x120mm
Ordering Information
(Part Number)
500W Single PSU:
Black HDD Handle:DAGE408U40DEBK-ES
Blue HDD Handle:DAGE408U40DEBL-ES
Red HDD Handle:DAGE408U40DERD-ES
Silver HDD Handle:DAGE408U40DESL-ES
Wood Look HDD Handle:DAGE408U40DEWB-ES

550W Redundant PSU:
Black HDD Handle:DAGE408U40DEBK-ES-R
Blue HDD Handle:DAGE408U40DEBL-ES-R
Red HDD Handle:DAGE408U40DERD-ES-R
Silver HDD Handle:DAGE408U40DESL-ES-R
Wood Look HDD Handle:DAGE408U40DEWB-ES-R
Dimensions (WxHxD)19.00" x 7.00" x 20.00"
482.6 mm x 177.8 mm x 508.0 mm
FAQ


There are no FAQ entries for this model.
Accessories

ImageAccessoryDescription
K-SF88XES-1MminiSAS SFF-8088 to 4x eSATA 1 meter Cable
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
CAGE-ESA2ESABuild-to-Order - ESATA to ESATA External SATA Cable

Connection Diagram
