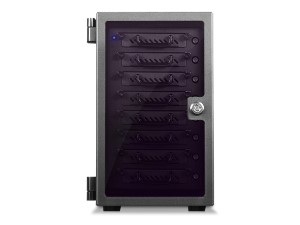

EAGE8402TG-ES
8-bay 2.5" SATA 6.0 Gb/s eSATA Hotswap JBOD Enclosure 150W PSU
  • Semi-transparent Door with Key Lock Design
  • Supports 8x 2.5" SATA 6Gb/s HDDs/SSDs (up to 9.5mm thick)
  • HDD Tray with Thumb Screw Design for Easy Swap
  • Two 60mm Cooling Fans for Ventilation
  • 150W Power Supply Included
  • Supports up to 6.0Gb/s Data Transfer Speed Per eSATA Connection
  • 8x eSATA Connectors
Product Introduction
EAGE8402TG-ES external multi-bay JBOD tower is designed especially for storage applications. It is able to hold 8x2.5" HDDs/SSDs for storing mass data via eSATA connectors. Two 60mm cooling fans enhance the ventilation inside. The external JBOD storage case has solid construction and a semi-transparent door with key lock, and is a cost-effective and flexible solution for your critical data storage.

Model NumberEAGE8402TG-ES
RoHS Compliance VersionYes
Form FactorTowerU
Host Interface8x eSATA
HDD Interface2.5" SATA I/II/III
Hotswap 2.5"8
LED DisplayPower and HDD Activity
MaterialSteel
Main ColorBlack
Power Supply150W
Raid LevelConfigured by Host Controller
Cooling Fan2x60mm
Dimensions (WxHxD)5.31" x 8.39" x 10.76"
134.9 mm x 213.1 mm x 273.3 mm
FAQ


There are no FAQ entries for this model.
Accessories

ImageAccessoryDescription
CAGE-ESA2ESABuild-to-Order - ESATA to ESATA External SATA Cable
K-SF88XES-1MminiSAS SFF-8088 to 4x eSATA 1 meter Cable

Connection Diagram
