IS-400RSH1UP
Build-to-Order - 400W 1U Redundant 1+1 Power Supply
Build-to-Order - 400W 1U Redundant 1+1 Power Supply
- Active PFC, Power Factor >=0.95
- Hold up Time: 16ms at 80% Load
- 5 Output Rails
- Front Access Ability
- Power Failure Alarm
- Over Current Protection
- Over Voltage Protection
- Short Circuit Protection
Product Introduction

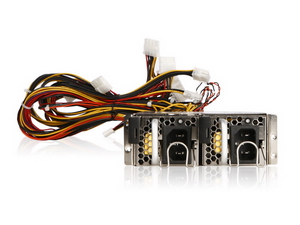

XEAL 1U redundant 1+1 106mm series power supplies are designed with hot-swap module function to maintain utmost system availability and power sharing features that extend power module life. It provides a greatly reliable power solution for compact high performance computing systems. This 1+1 series is 1U height and side by side module configuration to fit the most compact format while still offers power redundancy.
XEAL 1U redundant 1+1 106mm series power supplies are designed with hot-swap module function to maintain utmost system availability and power sharing features that extend power module life. It provides a greatly reliable power solution for compact high performance computing systems. This 1+1 series is 1U height and side by side module configuration to fit the most compact format while still offers power redundancy.
| Model Number | IS-400RSH1UP |
| RoHS Compliance | Yes |
| Output Wattage | 400 |
| Efficiency | 80% |
| Connector Type | Main Connector :: 24 pin 4pin 12V :: 1 8pin EPS 12V :: 1 |
| Dimensions (WxHxD) | 4.17" x 1.63" x 13.98" 105.9 mm x 41.4 mm x 355.1 mm |
Parts & Accessories
| Image | Accessory | Description |
 | IS-400RSH1UP-M | Build-to-Order - 400W 1U Redundant Power Supply Module for IS-400RSH1UP |

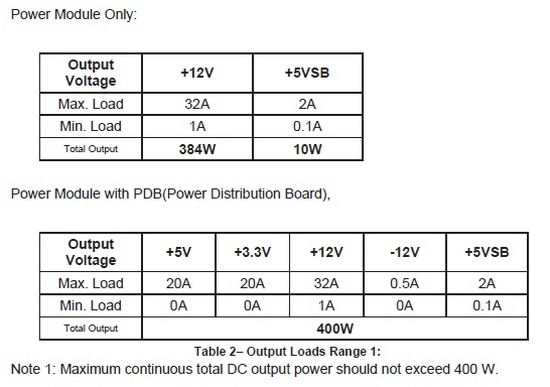

Output
