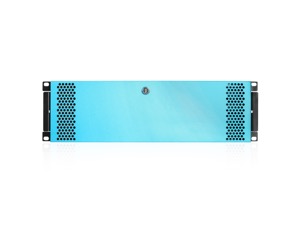

U-316HD
Build-to-Order - 3U 16-Bay Storage Server Rackmount Chassis
  • Fiber Optical Drive Tray Status Indicator
  • Advance Thermal Cooling Design Optimizes Airflow
  • Cooling Fans with Status Monitor
  • Front Access USB 3.0 Connector
  • Power + Fan Failure + HDD LED Indicator
  • Power/Alarm Reset Switch
  • Fully RoHS Compliance
  • Support 12Gb/s, 24Gb/s SAS/SATA Hard Drives
  • Anodize Color Front Panel with Locks
  • Backplane Host interface: Slimline SAS SFF 865
  • Backplane HDD interface : SAS/SATA





Product Introduction
The U storage server series rackmount has the unique outward appearance design, but the functionality and flexibility make U series a new breed of storage server. Also U series has effective cooling system. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the Slim SAS SFF-8654 12Gb/s,24Gb/s backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.

Model NumberU-316HD
RoHS Compliance VersionYes
Form factor3 U
Standard Drive Bays 2.5" Drive (internal): 1
Hotswap 3.5": 16
Hotswap HDD Type:2.5" & 3.5" SAS I/II/III/IV & SATA I/II/III
IndicatorsPower + Fan Failure + HDD LED
SwitchesPower, Reset, Mute
Expansion Slots7
SecurityFront Bezel
Material of Front Bezelsteel with anodize color paint
Material of Handle2.0mm Heavy-duty SGCC Cold-rolled Steel
Material of Main ChassisHeavy-duty SGCC Cold-rolled Steel
Front Connector2x USB 3.0
Motherboard Size12 x 10.5 (ATX, microATX)
Cooling Fan4x80mm
Optional Fan:2 x 60mm
Dimensions (WxHxD)18.97" x 5.22" x 22.82"
481.8 mm x 132.6 mm x 579.6 mm


FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
CAGE-AAM1MI-HBuild-to-Order - 4 SATA to SFF-8087 Reverse Breakout Cable
CAGE-AAMMMI-HBuild-to-Order - Internal mini SAS to Internal mini SAS 50cm Cable
RP-RAIL-20-1U20" Sliding Rail Kit for 1U Short Rackmount Chassis
CAGE-AAMMMI-75

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)
Redundant
IX-550R2UPD8550W 2U High Efficiency Redundant Power SupplyBrackets Not Required
IX-750S2UPD8G750W 2U High Efficiency Redundant Power SupplyBrackets Not Required
IX-800S2UPD8800W 2U High Efficiency Redundant Power SupplyBrackets Not Required
Single
IS-2U35PD82U 350W 80 Plus High Efficiency Power SupplyBrackets Not Required
IS-2U40PD8Build-to-Order - 2U 400W 80 Plus High Efficiency Power SupplyBrackets Not Required
IS-2U46PD82U 460W 80 Plus High Efficiency Power SupplyBrackets Not Required
TC-2U50PD8EOL - 500W 2U High Efficiency Switching Power SupplyBrackets Not Required
IS-2U50PD8Build-to-Order - 2U 500W 80 Plus High Efficiency Power SupplyBrackets Not Required
TC-2U55PBuild-to-Order - 550W 2U Switching Power SupplyBrackets Not Required
TC-2U60PD8EOL - 600W 2U High Efficiency Switching Power SupplyBrackets Not Required
TC-2U70PD8700W 2U High Efficiency Switching Power SupplyBrackets Not Required
TC-2U80PD82U 800W High Efficiency Switching Power SupplyBrackets Not Required

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
