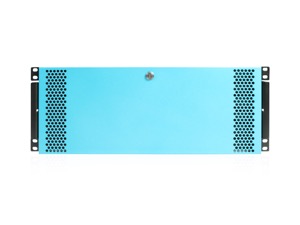

U-424HD
Build-to-Order - 4U 24-Bay Storage Server Rackmount Chassis
  • Fiber Optical Drive Tray Status Indicator
  • Advance Thermal Cooling Design Optimizes Airflow
  • Cooling Fans with Status Monitor
  • Front Access USB 3.0 Connector
  • Power + Fan Failure + HDD LED Indicator
  • Power/Alarm Reset Switch
  • Fully RoHS Compliance
  • Support 12Gb/s, 24Gb/s SAS/SATA Hard Drives
  • Anodlze color Front Panel with Locks
  • Backplane Host interface: Slimline SAS SFF
  • Backplane HDD interface: SAS/SATA





Product Introduction
The U storage server series rackmount has the unique outward appearance design, but the functionality and flexibility make U series a new breed of storage server. Also U series has effective cooling system. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the Slim SAS SFF-8654 12Gb/s, 24Gb/s backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.

Model NumberU-424HD
RoHS Compliance VersionYes
Form factor4 U
Standard Drive Bays 2.5" Drive (internal): 1
Hotswap 3.5": 24
Hotswap HDD Type:2.5" & 3.5" SAS I/II/III/IV & SATA I/II/III
IndicatorsPower + Fan Failure + HDD LED
SwitchesPower, Reset, Mute
Expansion Slots8
SecurityFront Bezel
Material of Front BezelHeavy-duty SGCC Cold-rolled Steel
Material of Handle2.0mm Heavy-duty SGCC Cold-rolled Steel
Material of Main ChassisHeavy-duty SGCC Cold-rolled Steel
Front Connector2x USB 3.0
Motherboard Size12" x 13"
Cooling Fan4x120mm
Dimensions (WxHxD)18.98" x 6.98" x 21.21"
482.1 mm x 177.3 mm x 538.7 mm


FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
CAGE-AAM1MI-HBuild-to-Order - 4 SATA to SFF-8087 Reverse Breakout Cable
CAGE-AAMMMI-HBuild-to-Order - Internal mini SAS to Internal mini SAS 50cm Cable
RP-RAIL-20-1U20" Sliding Rail Kit for 1U Short Rackmount Chassis
CAGE-AAMMMI-75

Compatible Power Supplies

Model #DescriptionRequired
Bracket(s)
Redundant
IS-550R8PEOL - 550W PS2 Mini Redundant Power SupplyBrackets Not Required
IS-800R3NPSpecial Order - 800W PS2 Mini Redundant Power SupplyBrackets Not Required
Single
TC-400PD8Build-to-Order - 400W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-500PD8B500W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-500PD8500W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-500PD8500W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-700PD8B700W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
