EX4M36-EXP

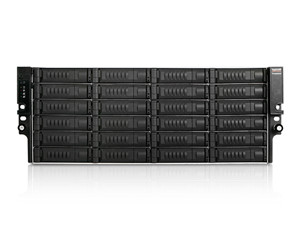

EOL - 4U 36-Bay Storage Server Rackmount Chassis with SAS Expander

Fiber Optical Drive Tray Status Indicator
Fully RoHS Compliance
Power + LAN + HDD LED Indicator
6Gb/s SAS Expander (SFF-8087) with SGPIO
Support EATX Motherboard
Supports Both SAS/SATA Hard Drives
Sliding Rails Included
Equipped with 3x 120mm and 3x 80mm PWM Fans

Product Introduction
The EX storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make EX series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the mini SAS backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	EX4M36-EXP
RoHS Compliance	Yes
Form factor	4 U
Standard Drive Bays	2.5" Drive (internal): 2 Hotswap 3.5": 36
Hotswap HDD Type:	3.5" SAS I/II & SATA I/II/III
Indicators	Power, HDD, LAN
Switches	Power, Reset
Expansion Slots	7 (Low profile)
Material of Main Chassis	Heavy-duty SGCC Cold-rolled Steel
Color of Main Chassis	Black
Motherboard Size	12 x 13 (EATX, ATX, microATX)
Cooling Fan	3x80mm, 3x120mm
Dimensions (WxHxD)	19.00" x 7.00" x 26.73" 482.6 mm x 177.8 mm x 678.9 mm
Notes	- hard drive backplane requires 8 molex power connectors - a controller with at least two SFF-8087 or SFF-8643 connectors is required

Download

Product Drawing (PDF)

Controller Reference

FAQ

Q :	How to install the rail system?
A :	Please refer to the rail system TC-RAIL28-EX34 product page. http://www.istarusa.com/istarusa/products.php?model=TC-RAIL28-EX34
Q :	How to install 2.5" HDD/SSD?
A :	Please find the PDF file for more information.
Q :	How to connect a controller to the SAS expanders?
A :	Please find the PDF file for more information.
Q :	Specifications of the 80mm and 120mm PWM fans.
A :	The max. performance of the 80mm fan is 6800 RPM, 95.63 CFM, and 60.2 dBA. The max. performance of the 120mm fan is 3600 RPM, 164.39 CFM, and 56.5 dBA.
Q :	What's the hard drive order in EX4M36-EXP chassis?
A :	Please refer to the PDF file.
Q :	Hard drive LED status
A :	Please refer to the PDF file.

Optional Accessories

	Model #	Description
	K-SF87-75	miniSAS SFF-8087 75 cm Cable
	K-HD4387-50	HD miniSAS SFF-8643 to miniSAS SFF-8087 50 cm Cable
	K-HD4387R-50	HD miniSAS SFF-8643 to miniSAS SFF-8087 Right Angle 50 cm Cable
	K-SF87R-50	miniSAS SFF-8087 Right Angle 50 cm Cable

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-700S2UP	Build-to-Order - 700W 2U Redundant Power Supply	BRT-EX-S2UP (1)
	IS-760S2UPD8	760W 2U High Efficiency Redundant Power Supply	Brackets Not Required
	IS-960S2UPD8	960W 2U High Efficiency Redundant Power Supply	Brackets Not Required
