DAGE424U40BK-6MS
4U 24-bay 3.5" SAS/SATA miniSAS SFF8088 JBOD Enclosure
4U 24-bay 3.5" SAS/SATA miniSAS SFF8088 JBOD Enclosure
- Supports 24x 3.5" SAS/SATA 6Gb/s Hard Drives
- 6x miniSAS (SFF8088) Connectors for Fast Data Transfer Speed
- 3x 120mm Cooling Fans with Status Monitor
- Power and HDD LED Indicator for Each Hard Drive
- Power and Alarm Reset Switch
- Optional Redundant Power Supply
- Fully RoHS Compliance
- Hot-swappable Both on Host and Device
- Supports up to 6.0Gb/s Data Transfer Speed Per Port/Channel; Total Bandwidth up to 24Gb/s per Connector
Product Introduction

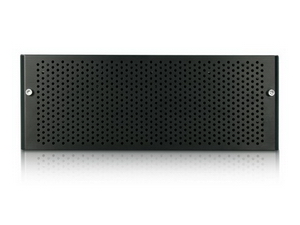

DAGE424U40BK-6MS is an external 4U-24 Bay Hot-Swap SAS/SATA rackmount disk array storage chassis. It provides users a storage capacity for up to 24 hard drives for RAID configurations. This 4U-24 Bay external SAS/SATA JBOD is designed with high quality external miniSAS (SFF8088) connectors. Three 120mm cooling fans offer long lasting and enhanced thermal cooling solution.
DAGE424U40BK-6MS is an external 4U-24 Bay Hot-Swap SAS/SATA rackmount disk array storage chassis. It provides users a storage capacity for up to 24 hard drives for RAID configurations. This 4U-24 Bay external SAS/SATA JBOD is designed with high quality external miniSAS (SFF8088) connectors. Three 120mm cooling fans offer long lasting and enhanced thermal cooling solution.
SUPPORT
Providing technical support as of top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
| Model Number | DAGE424U40BK-6MS |
| RoHS Compliance Version | Yes |
| Form factor | 4 U |
| Standard Drive Bays | None |
| Hotswap HDD Type: | 3.5? SAS I/II & SATA I/II/III |
| Material of Main Chassis | Heavy-Duty Cold-Roll Steel |
| Color of Main Chassis | Black |
| Cooling Fan | 3x120mm |
| Ordering Information (Part Number) | with 700W Single PSU:DAGE424U40BK-6MS with 550W Redundant PSU:DAGE424U40BK-6MS-R |
| Dimensions (WxHxD) | 19.00" x 7.00" x 22.50" 482.6 mm x 177.8 mm x 571.5 mm |
FAQ
| Q: | How to employ docking stations in Windows 7? |
| A: | Please refer to the document
 |
| Q: | What is RAID technology? |
| A: | Please refer to the document.
|
| Q: | How to setup more than 2TB disk array at Win XP? |
| A: | Please refer to the document. |
Optional Accessories
| Model # | Description | |
 | CAGE-AAMMM1 | Build-to-Order - External mini SAS to External mini SAS Cable |
 | ZAGE-H-8788-DU | Build-to-Order - Dual miniSAS Host Adapter |
 | ZAGE-H-8788-QU | Build-to-Order - Quad miniSAS Host Adapter |
 | ZAGE-H-8788-SI | Build-to-Order - Single miniSAS Host Adapter |
 | TC-RAIL-20 | 20" Sliding Rail Kit for Most Rackmount Chassis |
 | TC-RAIL-24 | 24" Sliding Rail Kit for Most Rackmount Chassis |
 | TC-RAIL-26 | 26" Sliding Rail Kit for Most Rackmount Chassis |
Compatible Power Supplies
| Model # | Description | Required Bracket(s) |
Compatible Motherboards
| Model # | Motherboard Size | Company Name |
There are no compatibility motherboard for this model. | ||
